Price | RM689.00 RM889.00 RM |
Product SKU | DOOR-HIK-DS-KIS601 |
Brand | Hikvision |
Size (L x W x H) | 35 cm x 24 cm x 18 cm |
Availability | Out Of Stock |
Description
Highlight
- Video Intercom And Access Control
- Built-In IC Card Reader Supports
- Self-Adaptive Supplemental IR
- One-Touch Calling
- Time Synchronization Via NTP
- Remotely Unlock Via Client Or App
- Remotely Answer Call Via Client Or App
- 7-Inch Colorful FTF LCD With Resolution 800 x 480
- Capacitive Touch Screen And Physical Buttons
- Noise Suppression And Echo Cancellation
- H.264 Video Compression

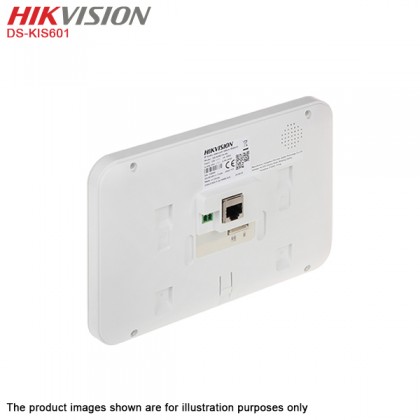

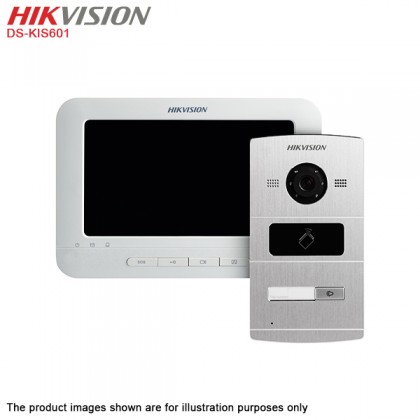

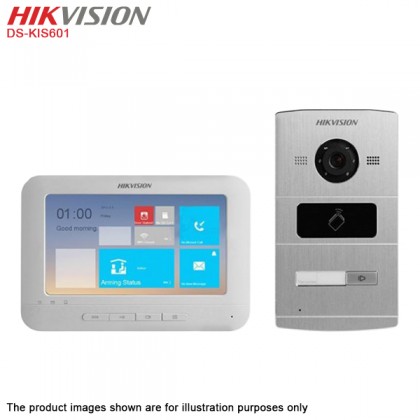

Hikvision DS-KIS601 IP Intercom Kit With Door Access Function

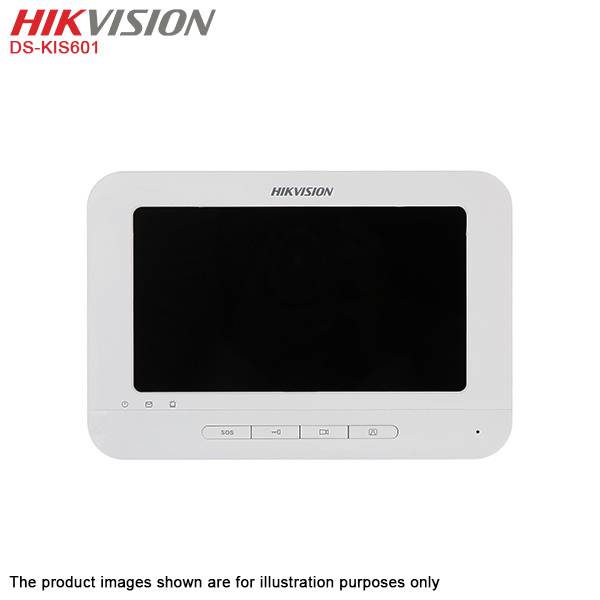

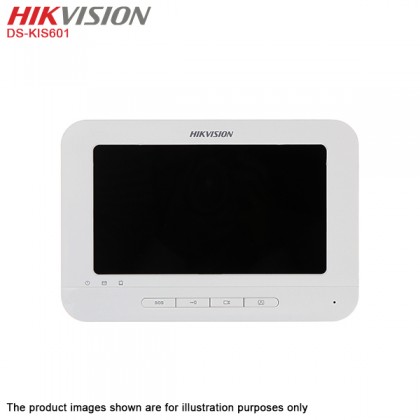

Hikvision KH6310-WL Specification
Processor | High-Performance Embedded SOC Processor |
Operation System | Embedded Linux Operation System |
Display Screen | 7-Inch Colorful TFT LCD |
Display Resolution | 800 x 480 |
Operation Method | Capacitive Touch Screen, Physical Button |
Operation Interface | Flattened UI Operation Interface |
Audio Input | Built-In Omnidirectional Microphone |
Audio Output | Built-In Loudspeaker |
Audio Compression Standard | G.711 U |
Audio Compression Rate | 64Kbps |
Audio Quality | Noise Suppression And Echo Cancellation |
Ethernet | 10/100Mbps Self-Adaptive Ethernet |
Network Protocol | TCP/IP, RTSP |
Alarm Input | 2-CH Alarm Input Sensor |
Network Interface | 1 RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
RS-485 | 1 RS-485 Half-Duplex Port |
I/O Output | 1 |
Memory | 256M |
Power Supply | 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC |
Power Consumption | ≤10W |
Working Temperature | -10°C To +55°C |
Working Humidity | 10% To 90% |
Dimensions | 217mm x 142mm x 26mm (L x W x H) |
Certification | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |

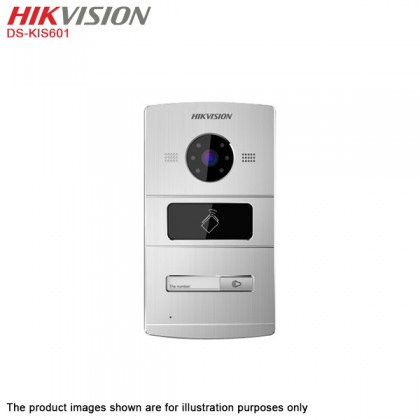

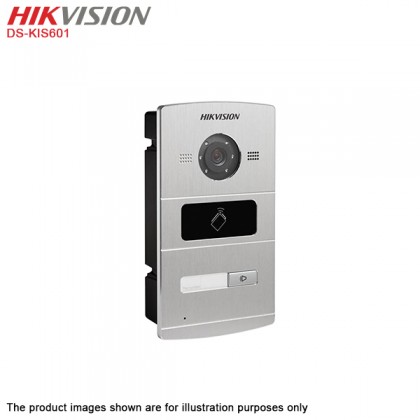

Hikvision DS-KV8102-IM Specification
Processor | High-Performance Embedded SOC Processor |
Operating System | Embedded Linux Operating System |
Camera | CMOS Low Illumination 1.3 MP HD Color Camera |
Video Compression Standard | H.264 |
Resolution | 1280 x 720 |
Video Frame Rate | 25fps |
Audio Input | Built-In Omnidirectional Microphone |
Audio Output | Built-In Loudspeaker |
Audio Compression Standard | G.711 U |
Audio Compression Rate | 64Kbps |
Audio Quality | Noise Suppression And Echo Cancellation |
Internal Card Reader | Built-In IC Card Reader |
Exit Button | Exit Button For Opening The Door |
Door Magnetic | Detection Detects Door Magnetic Status |
Light Supplement Mode | IR Supplement |
Ethernet | 10/100Mbps Self-Adaptive Ethernet |
Network Protocol | TCP/IP, RTSP |
Alarm Input | Door Magnetic Alarm, Tampering Alarm |
Network Interface | 1 RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
RS-485 | 1 RS-485 Half-Duplex Port |
I/O Input | 4 |
I/O Output | 1 |
Indoor Station Access Amount | 1 |
Material | Aluminum Alloy |
Power Supply | 24 VDC, Power Over Network Cable (KAD606-P) 12 VDC |
Power Consumption | ≤12W |
Working Temperature | -40° To +70°C |
Working Humidity | 10% To 90% |
IP Protection Level | IP65 |
Dimensions | 182mm x 100mm x 33mm (L x W x H) |
Certifications | CE, FCC, UL 60950-1, IC, C-TICK, ROHS, REACH, WEEE |
What In The Box
- 1 x Hikvision KH6310-WL Video Intercom Indoor Station With 7-Inch Touch Screen
- 1 x Hikvision DS-KV8102-IM Metal Villa Door Station
- 2 x Power Cable
- 1 x Screw Set
- 1 x Installation CD
- 1 x Quick Start Guide
Warranty
1 Year Warranty
Local Manufacturer Warranty
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13, Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
