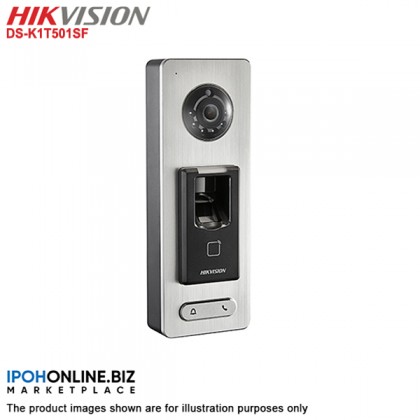

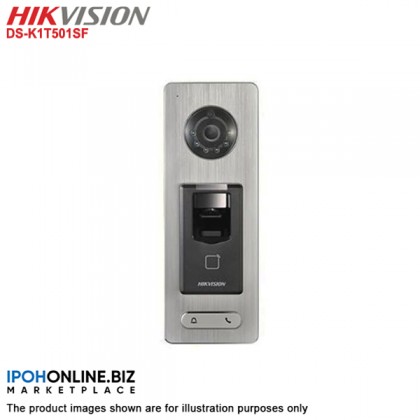

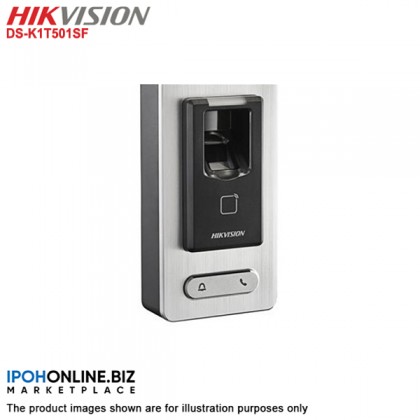

Hikvision DS-K1T501SF 2MP IP65 Water-Proof Video Access Control Terminal
Price RM550.00 RM650.00 RM
Product SKU ACC-HIK-DSK1T501SF
Brand Hikvision
Size (L x W x H) 30 cm x 20 cm x 12 cm
Availability 3
Quantity
Description
Highlight
  • Communication via TCP/IP and Wi-Fi
  • Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card
  • QR code authentication; Generates QR code via iVMS-4200 client software or other systems
  • Multiple authentication modes: QR code, card, fingerprint, card + fingerprint, card + password, fingerprint + password, card + fingerprint + password, and so on
  • Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller

Features

  • Brushed metal surface
  • Communication via TCP/IP and Wi-Fi
  • Supports EHome protocol for public network communication
  • Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, optional)
  • Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card
  • QR code authentication; Generates QR code via iVMS-4200 client software or other systems
  • Two way-audio
  • Open door remotely via iVMS-4200 client software or other systems
  • Max. 50,000 cards No., Max. 200,000 access control event records and Max. 5000 fingerprints storage
  • Supports Mifare card reading
  • Multiple authentication modes: QR code, card, fingerprint, card + fingerprint, card + password, fingerprint + password, card + fingerprint + password, and so on
  • Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
  • RS-485 communication for connecting external card reader
  • Connect the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed
  • Protection level: IP65
  • Voice prompt for the results of authentication by card DS-K1T501SF Video Access Control Terminal MAIN FEATURES DS-K1T501SF AVAILABLE MODELS Spec of DS-K1T501SF Video Access Control Terminal
  • Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, duress card alarm, and so on.







Specifications

System Parameters
Fingerprint Recognition Duration ≤ 1.5s
Micro SD Card Max. 128G
FRR (False Rejection Rate) ≤0.01%
Card Reading Distance ≥2cm
FAR (False Accept Rate) ≤0.001%
Card Capacity 50,000
Card Reading Mode Mifare Card
Video Storage Record and Save Video through NVR
Camera 2MP/1080P, IR Light
Fingerprint Recognizer Optical Fingerprint Recognizer Module
Fingerprint Capacity 5,000
Event Capacity 200,000
Processor 32 Bit High-performance Processor
Device Interfaces
Communication Mode Terminal Mode: Uplink(TCP/IP), Downlink(RS485)
Card Reader Mode: Uplink (Wiegand 26/34, RS-485)
Output Interface Lock × 1, Alarm Output (Doorbell) × 1
Input Interface Doorbell Button × 1, Door Sensor × 1, Alarm Input × 2, Tamper-Proof Switch × 1, Exit Button × 1
General
Working Current 600mA (max)
Power Supply DC 12V/1A
Audio Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB)
Audio Output: Build-in Loudspeaker(1W)
Dimensions (L×W×H) 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
Protection Level IP 65 Water-Proof
Installation Wall Mounting
Working Humidity 10% to 90% (Non-Condensing)
Working Temperature
-40°C to +70°C (-40°F to +158°F)







hikvision ds-k1t501sf-2







hikvision ds-k1t501sf-4

Reviews (0)
view all
back
0
0 reviews
What's in the box
  • 1 x Hikvision DS-K1T501SF 2MP IP65 Water-Proof Video Access Control Terminal
  • 1 x Set Of Screw
