RM1,198.00 RM1,299.00 RM

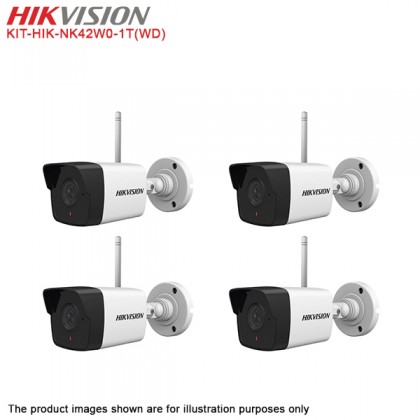

Hikvision NK42W0-1T(WD) 4 Channel HD Wi-Fi NVR 2MP Bullet CCTV Kit
Price RM1,198.00 RM1,299.00 RM
Product SKU KIT-HIK-NK42W0-1T(WD)
Brand Hikvision
Size (L x W x H) 44 cm x 26 cm x 35 cm
Availability Out Of Stock
Description
Highlight
  • 4*2MP Wi-Fi Cameras with IP66 Protection
  • 4-Channel Wi-Fi NVR with Two External Antennas
  • Easy to Install, User-Friendly Operation
  • Superior Wi-Fi Performance, Automatic Wireless Connection
  • Hik-Connect for Easy Network Management
  • Connect for Easy Network Management

Hikvision NK42W0-1T(WD) 4 Channel HD Wi-Fi NVR 2MP Bullet CCTV Kit

KIT-HIK-NK42W0-1T(WD)-4

Specification

Kit Model NK42W0-1T(WD)
Camera Model
4 × DS-2CV1021G0-IDW1/NF
NVR Model DS-7104NI-K1/W/M
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
WDR DWDR
Angle Adjustment Pan 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
Protection Level IP66
Material Front cover metal, back cover: plastic
Lens
Focal Length 2.8 mm
Aperture F2.0
Focus Fixed
FOV Horizontal FOV 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
Lens Mount M12
IR Range Up to 30 m
Compression Standard
Video Compression Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Baseline Profile/Main Profile
H.264+ Main Profile
H.265 Type No
H.265+ No
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
Video Bit Rate 32 Kbps to 8 Mbps
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Max. Resolution  1920 × 1280
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance
adjustable by client software or web browser
Day/Night Switch Auto/Scheduled/Day/Night
Network
Alarm Trigger Motion detection, video tampering, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, IPv6, UDP, QoS, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage No
Audio I/O 1 Built-in mic, mono sound
Video Out No
Alarm I/O No
Reset Button No
General
Power Supply 12 VDC ± 25%, 0.4 A, Φ 5.5 mm coaxial plug power
Consumption ≤ 5 W
Working Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity 95% or less (non-condensing)
Dimension (W × D × H) 99 mm × 68 mm × 66 mm (3.9" × 2.7" × 2.6")
Weight 272 g (0.6 lb)
NVR
Video and Audio
IP Video Input 4-ch
Up to 4 MP resolution
Incoming/Outgoing
Bandwidth
50 Mbps/40 Mbps
HDMI/VGA Output 1-ch, resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output 1-ch, RCA (linear, 1 KO)
Decoding
Video Resolution 4 MP/3 MP/1080p/1.3 MP/720p
Synchronous Playback 4-ch
Capability 2-ch@1080p / 1-ch@4 MP
Network
Network Interface 1, RJ45 10/100M Ethernet interface
Network Protocol IPv6, UPnP™, NTP, SADP, DHCP
Remote Connection 16
Wi-Fi
Frequency Band 2.4 GHz
Antenna Structure 2 × 2MIMO
Transmission Speed 144 Mbps
Transmission Standard IEEE 802.11b/g/n
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each dis
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out No
General
Power Supply 12 VDC
Consumption (without HDD) ≤ 12 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 260 mm × 246 mm × 48 mm (10.2" × 9.7" × 1.9")
Weight (without hard disk) ≤ 1 kg (2.2 lb)
Kit
Accessories Power: 5 power cables
Network cable: 4 × 18.3 m (60 ft) video and power cable
HDMI cable: 1 HDMI cable
Hard Drive Pre-installed 1 TB HDD
Certification FCC, CE
Weight (with package) ≤ 6 kg (13.2 lb)





What In The Box

  • 4 x DS-2CV1021G0-IDW1/NF Wifi IP Bullet Camera
  • 1 x DS-7100NI-K1/W/M Series Wi-Fi NVR
  • 4 x Power Adapters DC 12V
  • 4 x Screw Set
  • 1 x Wi-Fi Kit Quick Start Guide
  • 1 x Network Video Recorder User Manual
  • 4 x Drill Template
  • 1 x Mouse
  • 5 x Power Cable
  • 4 x Network Cable
  • 1 x HDMI Cable





Warranty
Hikvision NVR - 1 Years Warranty
Hikvision Camera - 1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]





Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
