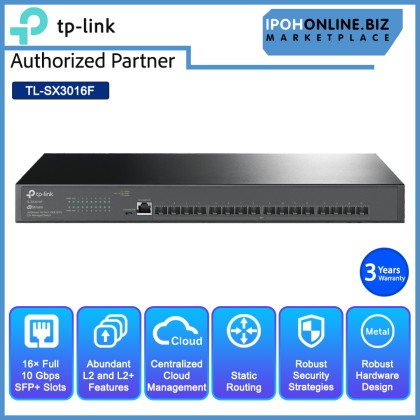

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
Price RM2,788.00 RM3,688.00 RM
Product SKU SWI-TL-SX3016F
Brand TP-Link
Size (L x W x H) 56 cm x 37 cm x 13 cm
Availability 2
Quantity
Description
Highlight
  • 16x Full 10GE SFP+ Slots : Lightning-Fast Full 10 Gbps SFP+ Slots Provide High-Bandwidth Aggregation Connectivity And Non-Blocking 320Gbps Switching Capacity. Learn More About TP-Link 10G/Multi-Gigabit Switching Solutions
  • Abundant L2 And L2+ Features : Supports A Complete Lineup Of L2 And L2+ Features Including Static Routing, Enterprise-Level QoS, IGMP Snooping And More
  • Robust Security Strategies : Helps Protect LAN Area Investment With Integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication And More
  • Dual Redundant Power Supplies : Two Power Supplies Backing Each Other Up Make It An Ideal Choice For Reliable Networking Architecture
  • Centralized Cloud Management : Integrates Into Omada SDN For Cloud Access And Remote Management
  • Standalone Management : Web, CLI (Console Port, Telnet, SSH), SNMP, RMON And Dual Image Bring Powerful Management Capabilities

swi-tl-sx3016f-05



Specification

Hardware Features
Interface 16 x 10GE SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port
Fan Quantity 1
Power Supply 100-240V AC~50/60Hz
Dimensions 440 x 220 x 44mm (W x D x H)
Mounting Rack Mountable
Max Power Consumption 32.74W (220V/50Hz)
Max Heat Dissipation 111.71 BTU/HR (220V/50Hz)
Performannce
Switching Capacity 320Gbps
Packet Forwarding Rate 238.08Mpps
MAC Address Table 32K
Jumbo Frame 9KB
Software Features
Quality Of Service 8 Priority Queues
802.1p CoS/DSCP Priority
Queue Scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow Based Rating Limiting
Smoother Performance
Action For Flows
- Mirror (To Supported Interface)
- Redirect (To Supported Interface)
- Rate Limit
- QoS Remark
L2 And L2+ Features Link Aggregation
- Static Link Aggregation
- 802.3ad LACP
- Up To 8 Aggregation Groups, Containing 8 Ports Per Group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security : TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port Based
- VLAN Based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-To-One
- Many-To-One
- Tx/Rx/Both
L2 Multicast IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
Multicast Filtering : 256 Profiles And 16 Entries Per Profile
VLAN VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN : 30 Entries
Protocol VLAN : Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List Time-Based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL Apply To Port/VLAN
Security IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard : 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard : 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up To 64 MAC Addresses Per Port
Broadcast/Multicast/Unicast Storm Control
- Kbps/Ratio Control Mode
802.1X
- Port Base Authentication
- Mac Base Authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius Authentication Andaccountability
AAA (Including TACACS+)
Port Isolation
Secure Web Management Through HTTPS With SSLv3/TLS 1.2
Secure Command Line Interface (CLI) Management With SSHv1/SSHv2
IP/Port/MAC Based Access Control
IPv6 IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 Neighbor Discovery (ND)
Path Maximum Transmission Unit (MTU) Discovery
Internet Control Message Protocol (ICMP) Version 6
TCPv6/UDPv6
IPv6 Applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features 16 IPv4/IPv6 Interfaces
Static Routing
- 48 Static Routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Management Web-Based GUI
Command Line Interface (CLI) Through The Console Port, Telnet
SNMP v1/v2C/v3
- Trap/Inform
- RMON (1,2,3,9 Groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Advanced Features Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)*
MIBs MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link Private MIB
Others
Certification CE, FCC, RoHS
Environment Operating Temperature : 0-45°C
Storage Temperature : -40-70°C
Operating Humidity : 10-90% RH Non-Condensing
Storage Humidity : 5-90% RH Non-Condensing



What In The Box

  • 1 x TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
  • 1 x Connect Cable
  • 2 x Power Cord
  • 2 x Rack-Mount Kit
  • 1 x Screw Kit
  • 1 x Installation Guide



Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
