RM1,409.00 RM1,799.00 RM

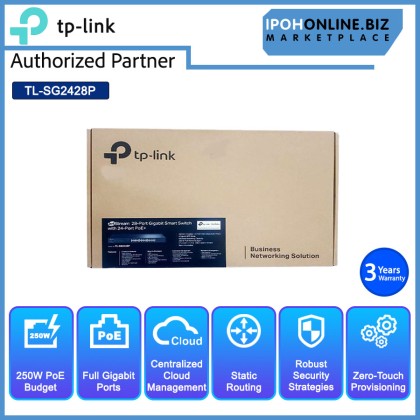

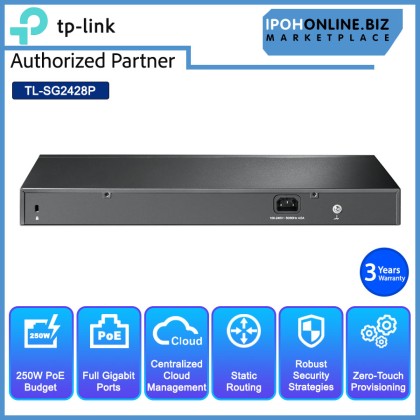

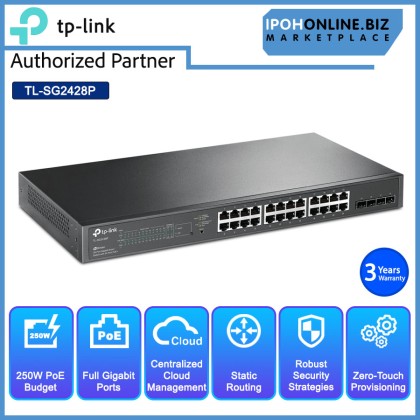

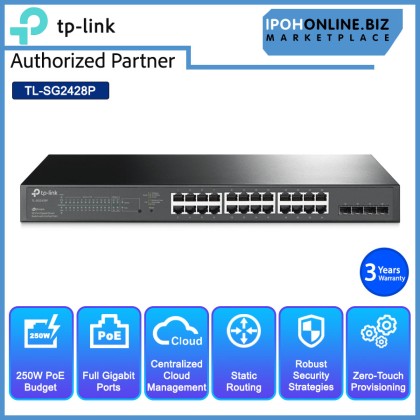

Tp-Link Omada TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Price RM1,409.00 RM1,799.00 RM
Product SKU SWI-TL-SG2428P
Brand TP-Link
Size (L x W x H) 57 cm x 37 cm x 14 cm
Availability 1
Quantity
Description
Highlight
  • 250 W PoE Budget
  • Full Gigabit Ports
  • Zero-Touch Provisioning (ZTP)
  • Cloud access and Omada app for ultra convenience and easy management

Specification

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Quantity 2
PoE+ Ports(RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption • 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation 109.53 BTU/h (with no PD connected)
1052.94 BTU/h (with 250 W PD connected)
PERFORMANCE
Bandwidth/Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service • Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• IPv6 QoS
• Voice VLAN
L2 and L2+ Features • Static Routing
• DHCP Relay
• DHCP Server
• IGMP Snooping V1/V2/V3
• 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
• Spanning Tree STP/RSTP/MSTP
• BPDU Filtering/Guard
• TC/Root Protect
• Loopback detection
• 802.3x Flow Control
• LLDP, LLDP-MED
VLAN • Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
• MAC/Protocol-based VLAN
Access Control List • L2–L4 package filtering
• MAC ACL
• IP ACL
• Combined ACL
• IPv6 ACL
Security • AAA
• Port Security
• DHCP Snooping
• IP-MAC-Port Binding
• IPv6-MAC-Port Binding
• ARP Inspection
• 802.1x and Radius Authentication
• SSH v1/v2
• SSL v3/TLSv1.2
• Broadcast/Multicast/Unknown-unicast Storm Control
• Dos Defend
IPv6 • Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
IPv6 Applications • DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features • Web-based GUI and CLI management
• SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
• RMON (1, 2, 3, 9 groups)
• CPU Monitoring
• Port Mirroring
• Firmware Upgrade: TFTP & Web
• System Diagnose: VCT
• SYSLOG & Public MIBS
• Dual Image
• EEE
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing



What's in the box

  • 1 x Tp-Link Omada TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
  • 1 x Power Cord
  • 1 x Quick Installation Guide
  • 1 x Rackmount Kit



Warranty
3 Years Warranty
Local Manfacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
