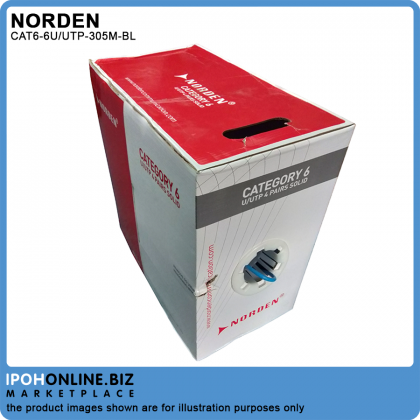

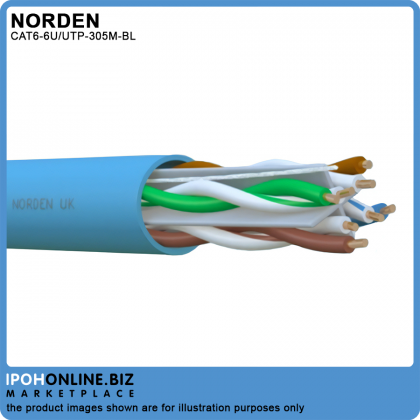

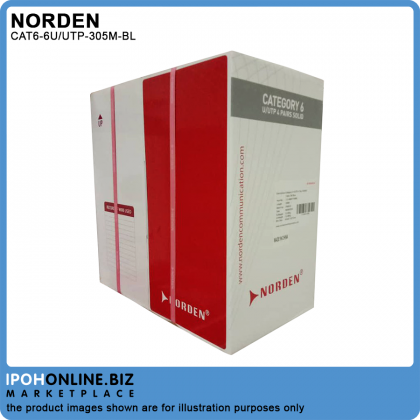

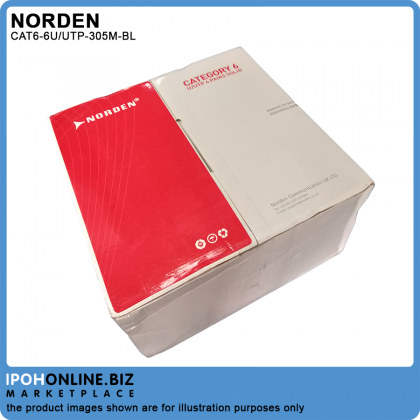

Norden Cat6 U/UTP 4 Pair 23AWG Cable PVC (Blue) - 305M
Price RM580.00 RM699.00 RM
Product SKU CAB-NORDEN-CAT6-6U/UTP-305M-BL
Brand OEM
Size (L x W x H) 48 cm x 44 cm x 30 cm
Availability 1
Quantity
Description
Highlight
  • Norden Category 6 UTP Cables Exceed Category 6 / Class E Specification.
  • Tested Up To 250 MHz Frequency Range
  • Designed To Support Gigabit 1000Base-T And 1000Base-Tx Applications Up To 100m.
  • Extremely High Pair-Balance Providing Excellent EMC (Electro Magnetic Compatibility)
  • Minimizing Radiation & Maximizing Noise Immunity
  • Providing High Alien Cross Talk Performance To UTP (Unshielded Twisted Pair) Cabling Systems.




Specification

Material Construction & Design
Conductor Material Bare Copper
Conductor Size 0.57 mm, 23 AWG
Conductor Construction Solid
Insulation Material High Density PE
Insulation Diameter 1.02±0.03 mm
Conductor Unit Identification Solid/Stripe
Colour Code Per TIA/EIA 568-B
Total Number of Wires 8
Rip Cord Yes
Outer Jacket FR PVC (CMR Rated)
Overall Drain-Wire Material N/A
Overall Drain-Wire Size N/A
Overall Drain-Wire Construction N/A
Outer Jacket Thickness & Ex. Diameter 0.55±0.05 mm, 6.3±0.4 mm
Outer Jacket Colour Per Requirement
Marking Per Requirement
Electrical & Mechanical Characteristics
Frequency Range 1 - 250 MHz
Impedance 100 Ω ±15
Coupling Attenuation 40 dB min @ 30-100 MHz 40-20 Log (f/100) @100-300 MHz
DC Resistance 73 Ω/km nom.
Max. Resistance Unbalance 4 %
Capacitance 5.6 nF/100m max.
Capacitance Unbalance 3.3 pF/m max.
Propagation Delay Skew 35 ns/100m max.
Velocity of Propagation 69 %
Dielectric Strength 1 KV/minute
Min. Insulation Resistance 5 GΩ•km
Max. Tensile Strength - Short Term 110 N
Min. Bend Radius 53.6 mm
Operating Temperature Range -20°C to +65°C



What's in the box

  • 1 x Norden Cat6 U/UTP 4 Pair 23AWG Cable PVC (Blue) - 305M



Warranty
No Warranty
