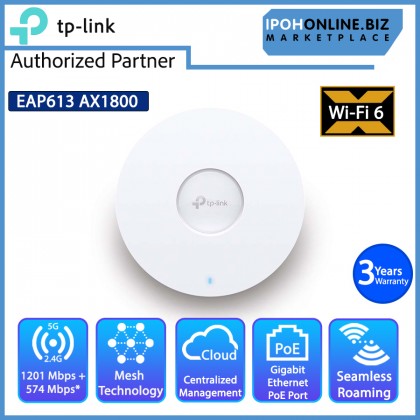

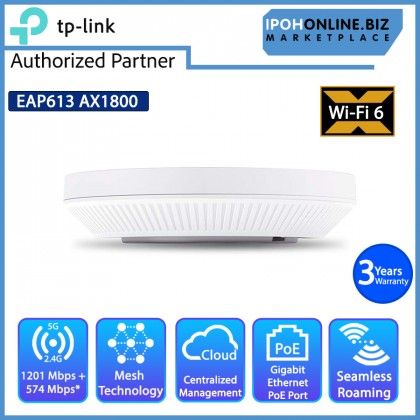

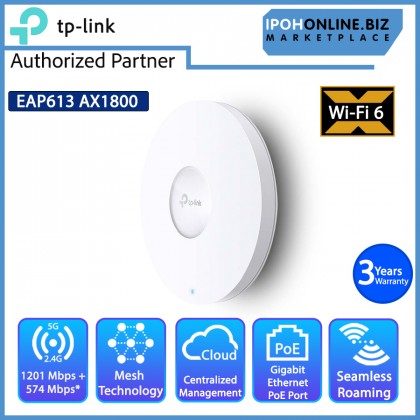

TP-Link Omada EAP613 AX1800 Ceiling Mount WiFi 6 Access Point
Price RM522.00 RM699.00 RM
Product SKU AP-TL-EAP613
Brand TP-Link
Size (L x W x H) 29 cm x 27 cm x 11 cm
Availability Pre-Order
Description
Highlight
  • Ultra-Fast Wifi 6 Speeds : Simultaneous 574 Mbps On 2.4 Ghz And 1201 Mbps On 5 Ghz Totals 1775 Mbps Wi-Fi Speeds.
  • High-Efficiency Wifi 6 : More Connected Devices Can Enjoy Faster Speeds.
  • Centralized Cloud Management : Manage The Whole Network Locally Or From The Cloud Via Web UI Or Omada App.
  • Seamless Roaming : Even Video Streams And Voice Calls Are Unaffected As Users Move Between Locations.
  • Omada Mesh : Enables Wireless Connectivity Between Access Points For Extended Range And Flexible Deployment.
  • Poe+ Powered : Supports DC (Adapter Is Not Included), 802.3at Poe+, And Passive Poe For Flexible Installations.
  • Ultra-Slim Design : Φ160 Mm × 33.6 Mm Elegant Design Brings More Agility.
  • Secure Guest Network : Along With Multiple Authentication Options (SMS/Facebook Wi-Fi/ Voucher, Etc.) And Abundant Wireless Security Technologies.



Features

  • Ultra-Fast Wifi 6 Speeds : Simultaneous 574 Mbps On 2.4 Ghz And 1201 Mbps On 5 Ghz Totals 1775 Mbps Wi-Fi Speeds.
  • High-Efficiency Wifi 6 : More Connected Devices Can Enjoy Faster Speeds.
  • Centralized Cloud Management : Manage The Whole Network Locally Or From The Cloud Via Web UI Or Omada App.
  • Seamless Roaming : Even Video Streams And Voice Calls Are Unaffected As Users Move Between Locations.
  • Omada Mesh : Enables Wireless Connectivity Between Access Points For Extended Range And Flexible Deployment.
  • Poe+ Powered : Supports DC (Adapter Is Not Included), 802.3at Poe+, And Passive Poe For Flexible Installations.
  • Ultra-Slim Design : Φ160 Mm × 33.6 Mm Elegant Design Brings More Agility.
  • Secure Guest Network : Along With Multiple Authentication Options (SMS/Facebook Wi-Fi/ Voucher, Etc.) And Abundant Wireless Security Technologies.



Specifications

Hardware Features
Interface     1× Gigabit Ethernet (Rj-45) Port
Button Reset
Power Supply 802.3at PoE
48 V Passive PoE
12 V / 1 A Dc (Power Adapter Is Not Included)
Power Consumption 11.0w (For PoE)
9.9w (For DC)
Dimensions ( W X D X H ) V2 And Above : 6.3 × 6.3 × 1.3 In (160 × 160 × 33.6 mm)
Antenna Type Internal Omni Antenna
2.4 GHz : 2× 4 dBi
5 GHz: 2× 5 dBi
Mounting Ceiling /Wall Mounting (Kits Included)
Junction Box Mounting
Wireless Features
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz And 5 GHz
Signal Rate 5 GHz : Up To 1201 Mbps
2.4 GHz : Up To 574 Mbps
Wireless Functions 1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up To 16 SSIDs, 8 For Each Band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power On dBm)
Qos(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics Based On SSID/AP/Client
Wireless Security Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID To VLAN Mapping
Rogue AP Detection
802.1x Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power

Ce:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 Ghz Band1/2, Eirp) <25 dBm (5 GHz Band3)

Fcc:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller Oc300
Omada Hardware Controller Oc200
Omada Software Controller
Cloud Access Yes, Through
Oc300
Oc200
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts Yes
Led On/Off Control Yes
Management Mac Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-Based Management HTTP/HTTPS
L3 Management Yes
Multi-Site Management Yes
Management Vlan     Yes
Zero-Touch Provisioning Yes. Requiring The Use Of Omada Cloud-Based Controller
Others
Certification Ce, Fcc, Rohs
Package Contents Eap613
Ceiling/ Wall Mounting Kits
Installation Guide
System Requirements Microsoft Windows Xp, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% Rh Non-Condensing
Storage Humidity: 5–90% Rh Non-Condensing



What In The Box

  • 1 x TP-Link Omada EAP613 AX1800 Ceiling Mount WiFi 6 Access Point
  • 1 x Ceiling / Wall Mounting Kits
  • 1 x Installation Guide



Warranty

3 Years Warranty
Local Manucfaturer Warranty
