RM698.00 RM899.00 RM

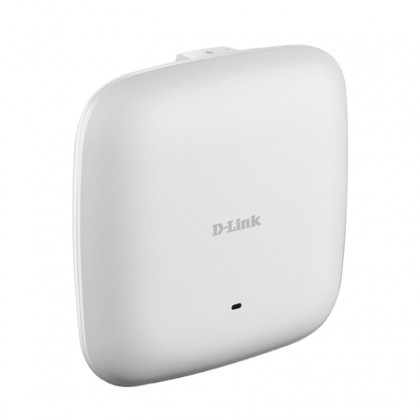

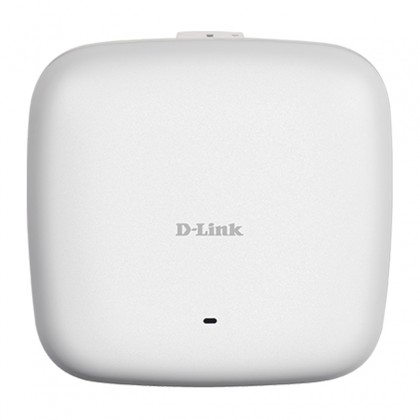

D-Link DAP-2680 AC1750 Wave 2 Dual-Band WI-FI 1.75 Gbps Wireless Poe Access Point
Price RM698.00 RM899.00 RM
Product SKU AP-DLINK-DAP-2680
Brand D-Link
Size (L x W x H) 31 cm x 24 cm x 15 cm
Availability 2
Quantity
Description
Highlight
  • 802.11ac Wave 2 wireless, up to 1.75 Gbps
  • MU-MIMO with beamforming
  • Band steering
  • Gigabit PoE-capable LAN port
  • AP Array utility support
  • Free D-Link Central WiFiManager


dlink-dap-2680-14dlink-dap-2680-15







dlink-dap-2680-9 AC1750 Wave 2 Wi-Fi
802.11ac Wave 2 wireless with combined speeds of up to 1.75 Gbps
dlink-dap-2680-11 Band steering
Automatically steers traffic to the fastest, least congested band.
dlink-dap-2680-12 MU-MIMO & Beamforming
Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.
dlink-dap-2680-13 Smart, secure & green
The wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saves power and increases network security.



Specifications

General
Device Interfaces IEEE 802.11a/b/g/n/ac Wave 2 wireless interface
1 x Gigabit PoE-capable LAN port
Standards IEEE 802.11a/b/g/n/ac
IEEE 802.3i/u/ab
IEEE 802.3az Energy-Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet
Antenna 3 x internal dual-band antennas
3.6 dBi at 2.4 GHz
4.2 dBi at 5 GHz
Operating Frequency 2.4 GHz band: 2.4 to 2.4835 GHz
5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Maximum Output Power 26.5 dBm for 2.4 GHz
26.5 dBm for 5 GHz
Data Signal Rate 2.4 GHz
Up to 450 Mbps
5 GHz
Up to 1300 Mbps
Functionality
Security WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server
Operating Modes Access Point (AP)
WDS with AP
WDS/Bridge (No AP Broadcast)
Wireless Clien
Network Management Telnet
Secure Telnet (SSH)
Web (HTTP)
Secure Socket Layer (SSL)

Traffic control
SNMP v1/v2c/v3
Nuclias Connect Software
Nuclias Connect Hub
LEDs Power/status
Physical
Dimensions 190 x 190 x 44.8 mm (7.48 x 7.48 x 1.76 in)
Weight 580 g (1.28 lbs) without mounting base
636.5 g (1.40 lbs) with mounting base
Power Supply External power adapter: 12 V/2 A (not included)
IEEE 802.3at PoE
Maximum Power Consumption 17.53 W
Temperature Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF) > 30,000 hours
Certifications FCC
CE
UL



What In The Box

  • 1 x D-Link DAP-2680 AC1750 Wave 2 Dual-Band WI-FI 1.75 Gbps Wireless Poe Access Point

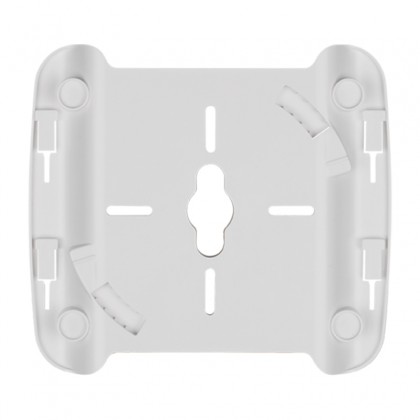

  • ​1 x Mounting Brackets
  • 1 x Ethernet Cable
  • 1 x Set Of Screw
  • 1 x Quick Install Guide
  • 1 x Warranty
  • 1 x CD ROM with product documentation



Warranty
Limited Lifetime  Warranty
Local Manufacturer Warranty
