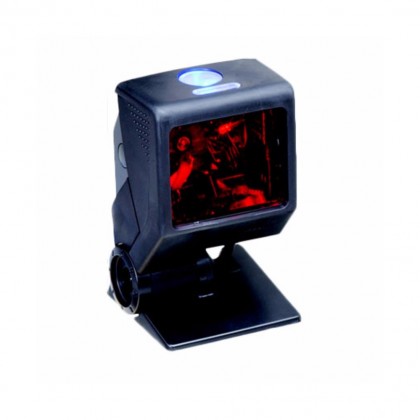

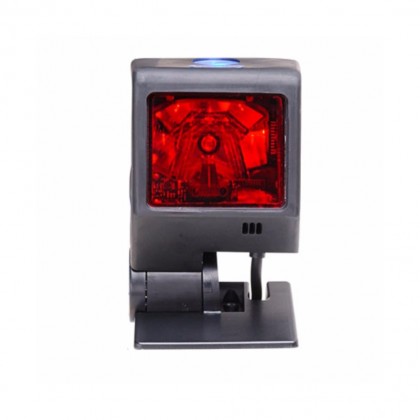

HONEYWELL Metrologic QuantumT MS3580 Laser Barcode Scanner
Price RM1,100.00 RM1,500.00 RM
Product SKU SCA-H-MS3580
Brand Honeywell
Size (L x W x H) 25 cm x 15 cm x 14 cm
Availability 1
Quantity
Description
Highlight
  • Custom configurable scan pattern
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy mounting integration
  • Fully automatic scanning operation
  • OPOS and JPOS system compatible
  • Single-line mode for menu reading
  • User-replaceable, single cable interface to host



This MK3580-31A38 QuantumT 3580 black omnidirectional laser scanner with built-in base scans and decodes linear one-dimensional (1D) barcodes, including GS1 and RSS symbologies, and includes a USB cable to transmit data for decoding. The scanner can be switched to a single-line scanning pattern for reading menus. The integrated weighted base enables presentation-style scanning, and the scanner can be handheld when working with bulky items. Two colored LEDs and an audible signal indicate the status of a scan. Optional sleep mode conserves power when not in use, waking the scanner when a barcode is placed within range of its sensor. A CodeGate setting automatically activates the laser to display a scan line when a barcode is placed within range of the device's sensor but prevents barcode data from being transmitted until a button is pushed to help reduce accidental scans. For a complete set of product specifications, please see the manufacturer's brochure.

Specifications
Input voltage 5V +/- 0.25V
Host system interfaces USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485), OCIA, Laser Emulation, Light Pen Wand Emulation
Scan pattern Omnidirectional: 5 fields of 4 parallel lines; button activated single line
Decode capability Reads standard 1D and GS1 DataBar symbologies
Scan rate Omnidirectional: 1,650 scan lines per second; single line: 80 scan lines per second
Pitch; skew 60 degrees; 60 degrees
Print contrast 35% minimum reflectance difference
Drop specs Designed to withstand 5 ft. (1.5 m) drops
Environmental sealing Sealed to resist airborne particulate contaminates
Reader dimensions* 2.6 x 2.7 x 4.3 inches/66 x 67 x 108 mm (L x W x H)
Reader weight 6 oz./170 g
Color Black

* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top.



Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities.

Honeywell manufactures products, materials, and technologies used in aerospace, transportation, and automation and control systems. The company, founded in 1885, is headquartered in Morristown, NJ.

What's in the Box?

  • Honeywell 3580 laser scanner
  • USB cable
  • Instructions
