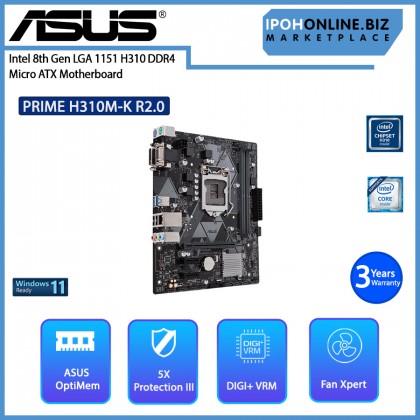

Asus PRIME H310M-K R2.0 Intel 8th Gen LGA 1151 H310 DDR4 DVI VGA USB 3.1 Gen 1 Micro ATX Motherboard
Price RM285.00 RM342.00 RM
Product SKU MOBO-ASUS-PRIME-H310M-K-R2.0
Brand Asus
Size (L x W x H) 28 cm x 26 cm x 8 cm
Availability 2
Quantity
Description

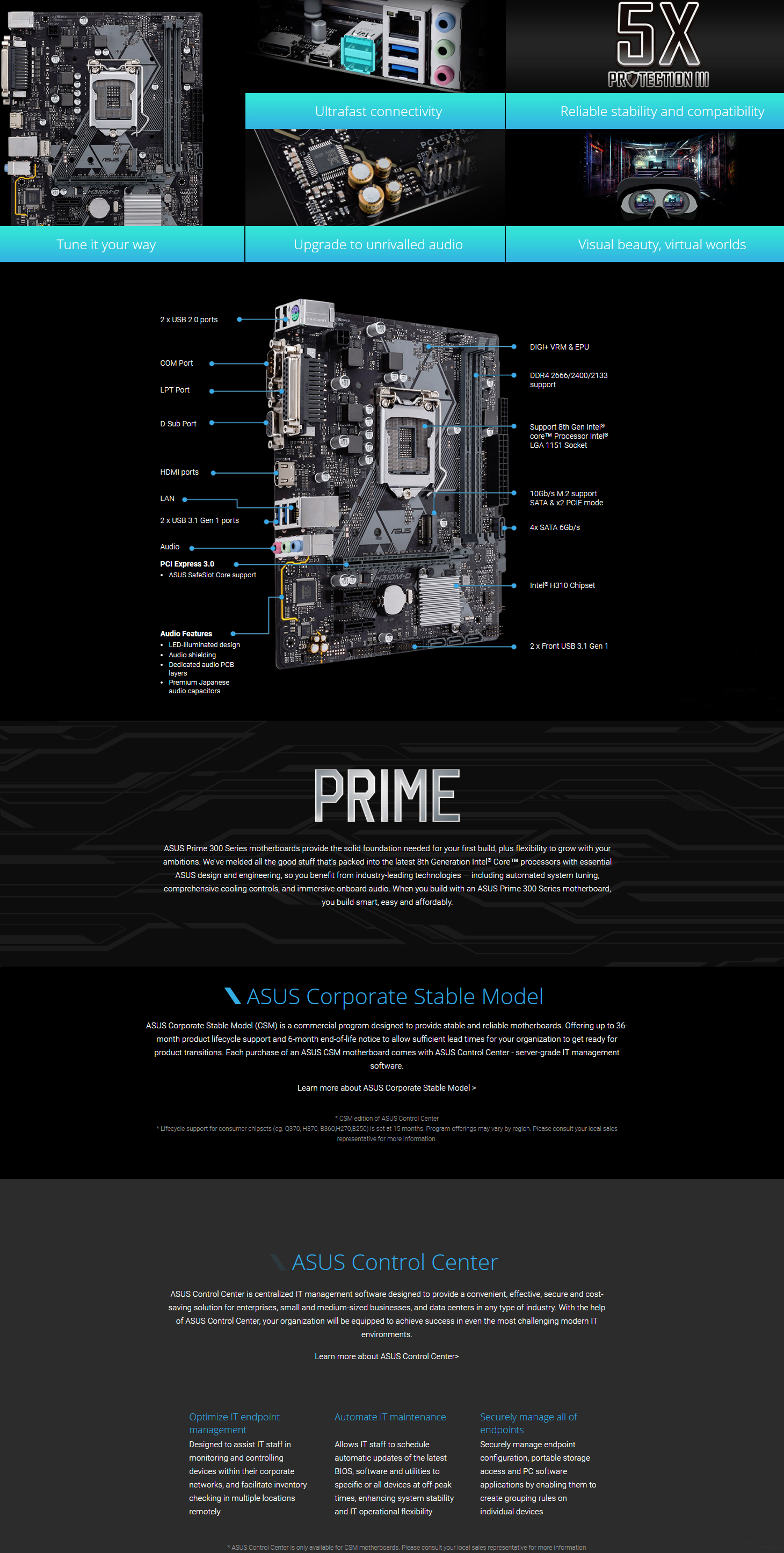

Highlight
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
  • 5X Protection III: Multiple hardware safeguards for all-round protection.





Specifications

CPU Intel Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list
Chipset Intel H310
Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
The maximum memory frequency supported varies by processor
DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
Graphic Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots 1 x PCIe 3.0/2.0 x 16 (x16 mode, gray)
2 x PCIe 2.0 x 1
Storage Intel H310 Chipset :
4 x SATA 6Gb/s port(s), gray,
LAN Realtek RTL8111H, 1 x Gigabit LAN
Audio Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports Intel H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, 4 at mid-board)
Special Features ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Accessories 1 x User´s manual
1 x I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Manageability WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Note 1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
Due to the Chipset limitation, when an M.2 device is installed in PCIe mode, the socket is set
to PCIe 2.0







What's in the box

  • 1 x Asus PRIME H310M-K R2.0 Intel 8th Gen LGA 1151 H310 DDR4 DVI VGA USB 3.1 Gen 1 Micro ATX Motherboard
  • 1 x I/O Shield
  • 1 x Quick Installation Guide
  • 1 x User Manual CD
  • 2 x SATA Cable







Warranty
3 Years Warranty
Local Manufacturer Warranty
