- Low Cost, High Reliability
- International AC Input Range
- Built In EMI Filter, Low Ripple
- High Efficiency, Low Working Temperature
- Short Circuit, Overload Protected
- Compact Size, Light Weight
- 12VDC 5A Output
Overview
12V 60W Adapter Type Power Supply Provides A Single 1% Regulated DC Output From Zero To The Maximum Load Of 60W. Over Voltage, Current Limit And Short Circuit Protection Are Built In. There Are No Internal Fuses. If The Current Limit Is Exceeded, The Supply Shuts Down Until AC Power Is Removed. It Automatically Resets When AC Power Is Restored. The Powersupplies Cannot Be Damaged By Shorting The Outputs. Operation From Either 110V or 220V AC Line Input Voltage.
• Low Cost, High Reliability
• International AC Input Range
• Built In EMI Filter, Low Ripple
• High Efficiency, Low Working Temperature
• Short Circuit, Overload Protected
• Compact Size, Light Weight
Specifications
Parameter | 12V DC Output |
Input Voltage | 100 ~ 240 VAC |
Input Frequency | 47 to 63 Hz |
Output Voltage | 12 VDC ± 5% |
Voltage Adj. Range (type) | 10.6 - 13.2 V |
Rated Current | 5 Amp |
Efficiency (type) | 85% |
Ripple & Noise (max.) | 180mV |
Line or Load Regulation | ± 0.3% |
Protection | Overload, Overvoltage, Short-circuit (power cycle to recover) |
Working Temperature | -10 to 60 C (See Output Derating Plot) |
Working Humidity | 20 to 90 % Non-Condensing |
What In The Box

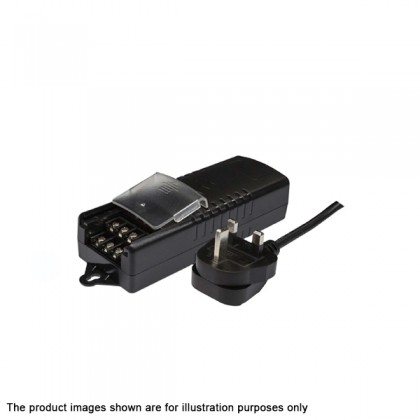

- 1 x 12V 5A 60W CCTV Power Supply Adapter 4CH with Cover Protection
Warranty
1 Month Warranty
Local Manufacturer Warranty
Warranty Policy:Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]
- 1 X 12V 5A 60W CCTV Power Supply Adapter 4CH With Cover Protection
