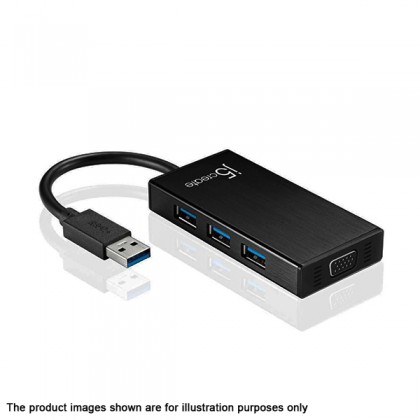

J5CREATE USB 3.0 VGA & 3-Port HUB (JUH410)
Price RM239.00 RM296.00 RM
Product SKU USB-J5-JUH410
Brand OEM
Size (L x W x H) 19.5 cm x 12.5 cm x 2.5 cm
Availability 2 - 3 Days
Description
Highlight
  • USB 3.0 Display
  • Supports display resolution:2048 x 1152 @ 32bit
  • Supports 1080P Video Playback
  • Supports Display Modes: Primary, Extended, Mirror
  • Display Rotation: 0°, 90°, 180°, 270°




The j5create JUH410 USB 3.0 VGA & 3-Port HUB as an external graphics card for your MAC or PC. It allows you to add an additional display and 3 USB 3.0 ports through your USB port.

With j5create multi-adapters, there is no need to open up your computer to add an expensive graphics card, you simply load the drivers, plug in the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready. It supports three viewing modes: primary, extended, mirror modes. With "plug & play" functionality between your computer and 2nd monitor or projector, you will be able to create a new visual environment in seconds.
j5create's elegant multi-adapter series provides you with a fast and portable alternative solution.

Features

USB 3.0 Display
* Supports display resolution:2048 x 1152 @ 32bit
* Supports 1080P Video Playback
* Supports Display Modes: Primary, Extended, Mirror
* Display Rotation: 0°, 90°, 180°, 270°


USB 3.0 SuperSpeed
* USB 3.0 SuperSpeed ports
* Transfer rates of up to 5Gb/s, enable bulky file backup
* Backwards compatible with USB 2.0 and USB 1.1 device
* Hot-swapping connect / disconnect without powering down
* Plug & Play
* Compatible with Windows and Mac OS



JUH410



Specifications

Interface

Host Interface

USB 3.0 Male Type-A connector

Video Interface

VGA-DB 15 pin Female connector

USB Port

USB 3.0 Female connector x 3 Ports

Power Jack

DC 5V (3.5mm OD, 1.35mm ID)

Power

Power Mode

Bus-powered or Self-Powered
*** When you connect with high power-consumption external HDD or USB devices that need bus power more than 150mA. We recommend you to attach the AC/DC power adapter included in your devices, or purchase JUH410 AC/DC power adapter. (sold separately)

Functions

Display

Video Playback: 1080P
Display resolution: 2048 x 1152 @ 32bit
Display Modes: Primary, Extended, Mirror
Display Rotation: 0°, 90°, 180°, 270°

Physical Specifications

Dimensions

Main body: 42.9(W)x 87(H)x14.2(D) mm
Cable length: 14.8 cm

Weight

Approximately 61.5 g (including cable)

Video Resolutions and Color Depth Support

Aspect Ratio

Resolution

Color Depth

Wide Screen Display

16:9

2048 x 1152

16,32 bits

16:10

1920 x 1200

16,32 bits

16:9

1920 x 1080

16,32 bits

16:10

1680 x 1050

16,32 bits

16:9

1600 x 900

16,32 bits

16:10

1440 x 900

16,32 bits

16:9

1360 x 768

16,32 bits

16:10

1280 x 800

16,32 bits

15:9

1280 x 768

16,32 bits

16:9

1280 x 720

16,32 bits

Standard Display

4:3

1600 x 1200

16,32 bits

4:3

1400 x 1050

16,32 bits

5:4

1280 x 1024

16,32 bits

4:3

1280 x 960

16,32 bits

4:3

1152 x 864

16,32 bits

4:3

1024 x 768

16,32 bits

4:3

800 x 600

16,32 bits

Environments

* Microsoft Windows 10 / 8.1 / 8 / 7 / XP (32-bit or 63-bit)
* Mac OS X 10.12 / 10.11 / 10.10 / 10.9 / 10.8 / 10.7 / 10.6
* CPU: Intel Dual Core 1.8GHz or above
* RAM: 2GB memory or higher
* Available USB port (USB 3.0 is recommended)

Note for Video Player:

*Windows XP users: "Windows Media Player" is recommended for video playback
*Windows XP users & MAC users: Some Windows XP & MAC products are not supported by USB 3.0 at this time, therefore we suggest USB 2.0 for 'office applications' only; Video Playback is not recommend due to USB 2.0 bandwidth limitations causing limited video performance.

Reviews (0)
view all
back
0
0 reviews
What's in the box
  • 1 x JUH410 USB 3.0 VGA & 3-Port HUB
  • 1 x Quick Installation Guide
  • 1 x Driver CD
